| 產品說明Introduction： 新能WNS系列全自動燃油（燃?xì)猓┱羝崴仩t是一種臥式三回程火管鍋爐。其主要結構由鍋殼、爐膽、轉向煙室、煙管等組成。鍋爐適用輕油、重油、天然氣、液化氣、城市煤氣等燃料。 采用濕背、波形爐膽結構，受熱面對稱布置，使鍋爐的受力和膨脹更合理； 合理的受熱面布置保證了良好的水循環和熱交換，使傳熱效果達到***佳狀態，提高了鍋爐熱效率； 采用全對接焊縫濕背式結構，避免了后墻受高溫?zé)煔鈸p壞，確保鍋爐可靠運行； 燃燒室采用波形爐膽，有效的降低了鍋爐的熱應力，提高了鍋爐的安全性和使用壽命； 選用國際著名品牌燃燒器和先進的全自動控制系統使鍋爐燃燒更穩定、操作更方便、運行更安全可靠；鍋爐安裝時間短，在工地上接通儀表閥門、水源、電源、燃料管道、排放管道、即可投入運行。 |
WNS automatic oil(gas)-fired steam/hot water boiler is the horizontal,three-return,fire-return,fire-tube boiler,mainlu consisting of housing,tank,diversion smoke chamber and fire tubes.Boiler can use light oil,heavy oil,natural gas,liquefied gas and urban coal gas.
The wet-backj corrugated tank can effectively reduce the thermal stress and improve the safety and life of boiler.
Heatingj areas are laid summetrically for reasonable pressure and expansion.
Sound layout of heating areas ensure good water circulation and heat ecchange,optimizing the effect of heat transfer and increasing the heating efficiency.
Steam boiler integrates the lower-level combustion chamber to expand the range of safe water level and stesm space in the boiler and to guarantee the good-quality steam.
Full butt-welding wet-back structure can avoid the rear wall from damage of hot fume and provide the reliable operation of boiler.
Select the worldly well-known burner and advanced automatic control systerm for more stable combustion,easier operation and safe and more reliable running.
產品范圍Scope：

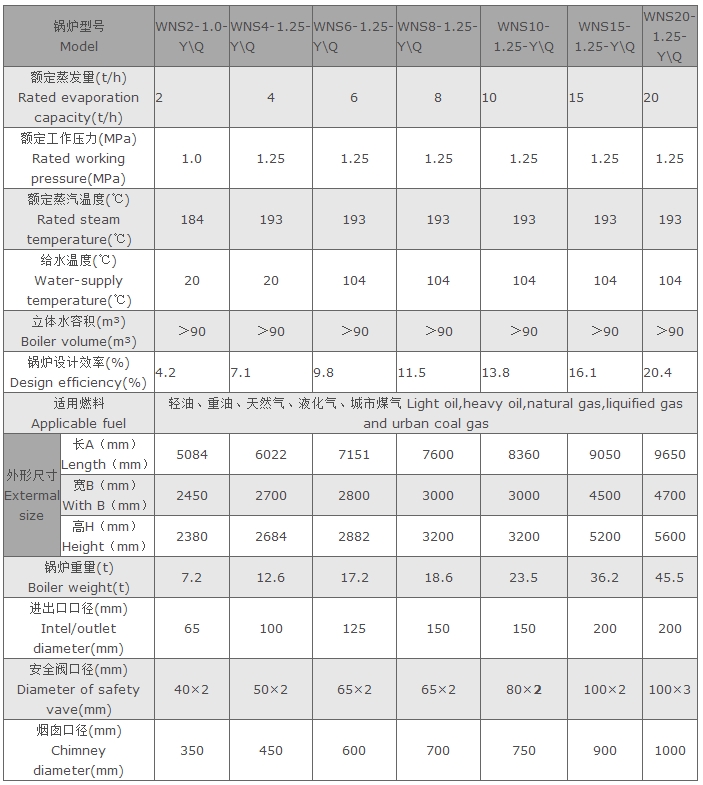

蒸汽鍋爐：蒸發量1-20t/h，壓力0.7-1.6MPa Steam boiler:evaporation capacity:1-20t/h,pressure:0.7-1.6Mpa

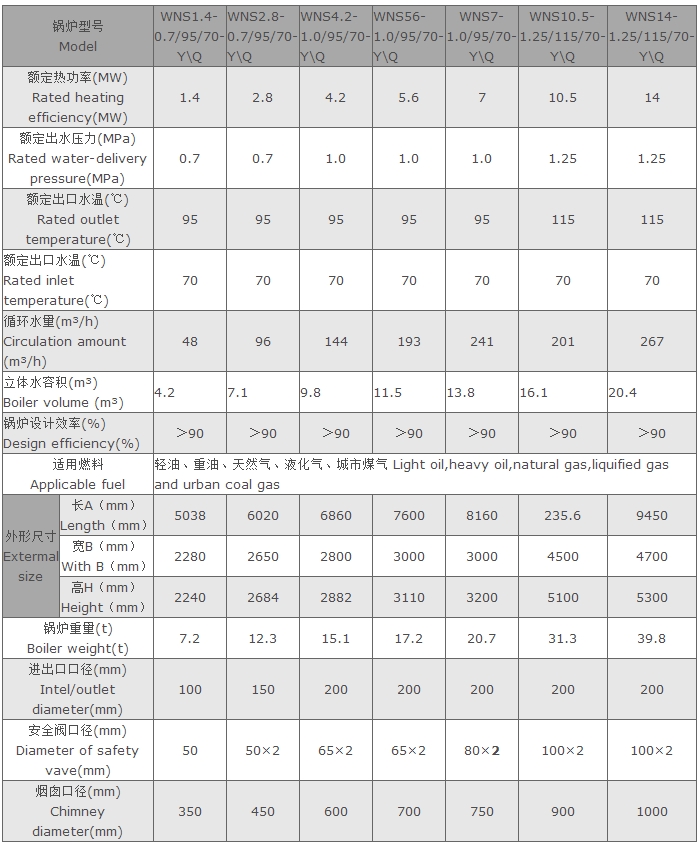

熱水鍋爐：供熱量0.7-14MW，壓力0.7-1.25MPa Hot water boiler:delivered heat:0.7-14MW,pressure:0.7-11.25MPa
列表鍋爐品種為本廠代表產品，如需其他型號參數鍋爐可參閱有關圖紙資料。
Listed models are tyical.IF other models are need,please refer to drawings and data available.
列表鍋爐品種為本廠代表產品，如需其他型號參數鍋爐可參閱有關圖紙資料。
Listed models are tyical.IF other models are need,please refer to drawings and data available.
